Binary Filter Parameters

Binary Filter - is a Costmap Filter that publishes a boolean topic, flipping binary state when the encoded filter space value (corresponding to the filter mask point where the robot is) is higher than given threshold. It then flips back when lower or equal.

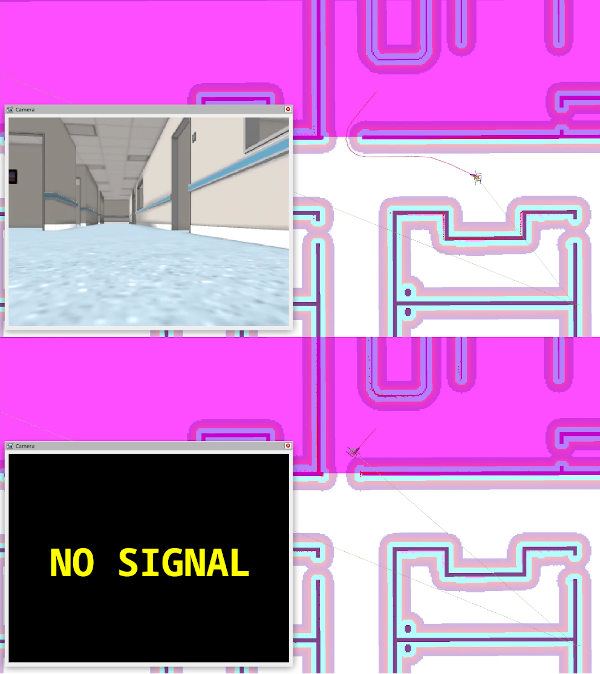

Filter space value is being calculated as: Fv = base + multiplier * mask_value, where base and multiplier are being published in a filter info by Costmap Filter Info Server. The example of usage are include: camera operating on/off to turn off cameras in sensitive areas, headlights switch on/off for moving indoors to outdoors, smart house light triggering, etc.

<filter name>: is the corresponding plugin name selected for this type.

<filter name>.enabled:

Type	Default
bool	True

Description

Whether it is enabled.

<filter name>.filter_info_topic:

Type	Default
string	N/A

Description

Name of the incoming CostmapFilterInfo topic having filter-related information. Published by Costmap Filter Info Server along with filter mask topic. For more details about Map and Costmap Filter Info servers configuration please refer to the Map Server / Saver configuration page.

<filter name>.transform_tolerance:

Type	Default
double	0.1

Description

Time with which to post-date the transform that is published, to indicate that this transform is valid into the future. Used when filter mask and current costmap layer are in different frames.

<filter name>.default_state:

Type	Default
bool	false

Description

Default state of binary filter.

<filter name>.binary_state_topic:

Type	Default
string	“binary_state”

Description

Topic of std_msgs::msg::Bool type to publish binary filter state to.

<filter name>.flip_threshold:

Type	Default
double	50.0

Descrioption

Threshold for binary state flipping. Filter values higher than this threshold, will set binary state to non-default.

Example

global_costmap:
  global_costmap:
    ros__parameters:
    ...
    plugins: ["static_layer", "obstacle_layer", "inflation_layer"]
    filters: ["binary_filter"]
    ...
    binary_filter:
      plugin: "nav2_costmap_2d::BinaryFilter"
      enabled: True
      filter_info_topic: "/costmap_filter_info"
      transform_tolerance: 0.1
      default_state: False
      binary_state_topic: "/binary_state"
      flip_threshold: 50.0
