#include <trajectory_execution_manager.h>

Classes
struct	TrajectoryExecutionContext
	Data structure that represents information necessary to execute a trajectory. More...

Public Types
typedef std::function< void(const moveit_controller_manager::ExecutionStatus &)>	ExecutionCompleteCallback

using	PathSegmentCompleteCallback = std::function< void(std::size_t)>

Public Member Functions
	TrajectoryExecutionManager (const rclcpp::Node::SharedPtr &node, const moveit::core::RobotModelConstPtr &robot_model, const planning_scene_monitor::CurrentStateMonitorPtr &csm)
	Load the controller manager plugin, start listening for events on a topic. More...

	TrajectoryExecutionManager (const rclcpp::Node::SharedPtr &node, const moveit::core::RobotModelConstPtr &robot_model, const planning_scene_monitor::CurrentStateMonitorPtr &csm, bool manage_controllers)
	Load the controller manager plugin, start listening for events on a topic. More...

	~TrajectoryExecutionManager ()
	Destructor. Cancels all running trajectories (if any) More...

bool	isManagingControllers () const
	If this function returns true, then this instance of the manager is allowed to load/unload/switch controllers. More...

const moveit_controller_manager::MoveItControllerManagerPtr &	getControllerManager () const
	Get the instance of the controller manager used (this is the plugin instance loaded) More...

void	processEvent (const std::string &event)
	Execute a named event (e.g., 'stop') More...

bool	ensureActiveControllersForGroup (const std::string &group)
	Make sure the active controllers are such that trajectories that actuate joints in the specified group can be executed. More...

bool	ensureActiveControllersForJoints (const std::vector< std::string > &joints)
	Make sure the active controllers are such that trajectories that actuate joints in the specified set can be executed. More...

bool	ensureActiveController (const std::string &controller)
	Make sure a particular controller is active. More...

bool	ensureActiveControllers (const std::vector< std::string > &controllers)
	Make sure a particular set of controllers are active. More...

bool	isControllerActive (const std::string &controller)
	Check if a controller is active. More...

bool	areControllersActive (const std::vector< std::string > &controllers)
	Check if a set of controllers is active. More...

bool	push (const moveit_msgs::msg::RobotTrajectory &trajectory, const std::string &controller="")

bool	push (const trajectory_msgs::msg::JointTrajectory &trajectory, const std::string &controller="")

bool	push (const trajectory_msgs::msg::JointTrajectory &trajectory, const std::vector< std::string > &controllers)

bool	push (const moveit_msgs::msg::RobotTrajectory &trajectory, const std::vector< std::string > &controllers)

const std::vector< TrajectoryExecutionContext * > &	getTrajectories () const
	Get the trajectories to be executed. More...

void	execute (const ExecutionCompleteCallback &callback=ExecutionCompleteCallback(), bool auto_clear=true)
	Start the execution of pushed trajectories; this does not wait for completion, but calls a callback when done. More...

void	execute (const ExecutionCompleteCallback &callback, const PathSegmentCompleteCallback &part_callback, bool auto_clear=true)

moveit_controller_manager::ExecutionStatus	executeAndWait (bool auto_clear=true)

moveit_controller_manager::ExecutionStatus	waitForExecution ()

std::pair< int, int >	getCurrentExpectedTrajectoryIndex () const

moveit_controller_manager::ExecutionStatus	getLastExecutionStatus () const
	Return the controller status for the last attempted execution. More...

void	stopExecution (bool auto_clear=true)
	Stop whatever executions are active, if any. More...

void	clear ()
	Clear the trajectories to execute. More...

void	enableExecutionDurationMonitoring (bool flag)

bool	executionDurationMonitoring () const
	Get the current status of the monitoring of trajectory execution duration. More...

void	setAllowedExecutionDurationScaling (double scaling)

double	allowedExecutionDurationScaling () const
	Get the current scaling of the duration of a trajectory to get the allowed duration of execution. More...

void	setAllowedGoalDurationMargin (double margin)

double	allowedGoalDurationMargin () const
	Get the current margin of the duration of a trajectory to get the allowed duration of execution. More...

void	setExecutionVelocityScaling (double scaling)

double	executionVelocityScaling () const
	Get the current scaling of the execution velocities. More...

void	setAllowedStartTolerance (double tolerance)
	Set joint-value tolerance for validating trajectory's start point against current robot state. More...

double	allowedStartTolerance () const
	Get the current joint-value for validating trajectory's start point against current robot state. More...

void	setWaitForTrajectoryCompletion (bool flag)
	Enable or disable waiting for trajectory completion. More...

bool	waitForTrajectoryCompletion () const
	Get the current state of waiting for the trajectory being completed. More...

rclcpp::Node::SharedPtr	getControllerManagerNode ()

Static Public Attributes
static const std::string	EXECUTION_EVENT_TOPIC = "trajectory_execution_event"

Detailed Description

Definition at line 62 of file trajectory_execution_manager.h.

Member Typedef Documentation

◆ ExecutionCompleteCallback

typedef std::function<void(const moveit_controller_manager::ExecutionStatus&)> trajectory_execution_manager::TrajectoryExecutionManager::ExecutionCompleteCallback

Definition of the function signature that is called when the execution of all the pushed trajectories completes. The status of the overall execution is passed as argument

Definition at line 69 of file trajectory_execution_manager.h.

◆ PathSegmentCompleteCallback

using trajectory_execution_manager::TrajectoryExecutionManager::PathSegmentCompleteCallback = std::function<void(std::size_t)>

Definition of the function signature that is called when the execution of a pushed trajectory completes successfully.

Definition at line 73 of file trajectory_execution_manager.h.

Constructor & Destructor Documentation

◆ TrajectoryExecutionManager() [1/2]

trajectory_execution_manager::TrajectoryExecutionManager::TrajectoryExecutionManager	(	const rclcpp::Node::SharedPtr &	node,
		const moveit::core::RobotModelConstPtr &	robot_model,
		const planning_scene_monitor::CurrentStateMonitorPtr &	csm
	)

Load the controller manager plugin, start listening for events on a topic.

Definition at line 58 of file trajectory_execution_manager.cpp.

◆ TrajectoryExecutionManager() [2/2]

trajectory_execution_manager::TrajectoryExecutionManager::TrajectoryExecutionManager	(	const rclcpp::Node::SharedPtr &	node,
		const moveit::core::RobotModelConstPtr &	robot_model,
		const planning_scene_monitor::CurrentStateMonitorPtr &	csm,
		bool	manage_controllers
	)

Load the controller manager plugin, start listening for events on a topic.

Definition at line 71 of file trajectory_execution_manager.cpp.

◆ ~TrajectoryExecutionManager()

trajectory_execution_manager::TrajectoryExecutionManager::~TrajectoryExecutionManager ( )

Destructor. Cancels all running trajectories (if any)

Definition at line 84 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ allowedExecutionDurationScaling()

double trajectory_execution_manager::TrajectoryExecutionManager::allowedExecutionDurationScaling ( ) const

Get the current scaling of the duration of a trajectory to get the allowed duration of execution.

Definition at line 277 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ allowedGoalDurationMargin()

double trajectory_execution_manager::TrajectoryExecutionManager::allowedGoalDurationMargin ( ) const

Get the current margin of the duration of a trajectory to get the allowed duration of execution.

Definition at line 287 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ allowedStartTolerance()

double trajectory_execution_manager::TrajectoryExecutionManager::allowedStartTolerance ( ) const

Get the current joint-value for validating trajectory's start point against current robot state.

Definition at line 307 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ areControllersActive()

bool trajectory_execution_manager::TrajectoryExecutionManager::areControllersActive ( const std::vector< std::string > & controllers )

Check if a set of controllers is active.

Definition at line 728 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ clear()

void trajectory_execution_manager::TrajectoryExecutionManager::clear ( )

Clear the trajectories to execute.

Definition at line 1270 of file trajectory_execution_manager.cpp.

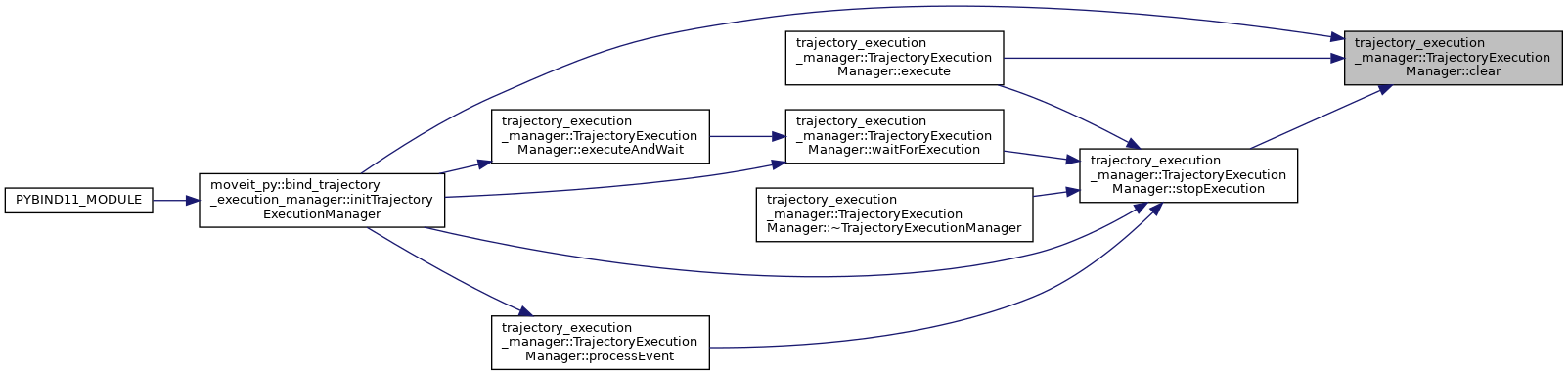

Here is the caller graph for this function:

◆ enableExecutionDurationMonitoring()

void trajectory_execution_manager::TrajectoryExecutionManager::enableExecutionDurationMonitoring ( bool flag )

Enable or disable the monitoring of trajectory execution duration. If a controller takes longer than expected, the trajectory is canceled

Definition at line 262 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ ensureActiveController()

bool trajectory_execution_manager::TrajectoryExecutionManager::ensureActiveController ( const std::string & controller )

Make sure a particular controller is active.

Note: If the 'moveit_manage_controllers' parameter is false and the controllers that happen to be active do not include the one specified as argument, this function fails.

Definition at line 1688 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ensureActiveControllers()

bool trajectory_execution_manager::TrajectoryExecutionManager::ensureActiveControllers ( const std::vector< std::string > & controllers )

Make sure a particular set of controllers are active.

Note: If the 'moveit_manage_controllers' parameter is false and the controllers that happen to be active do not include the ones specified as argument, this function fails.

Definition at line 1693 of file trajectory_execution_manager.cpp.

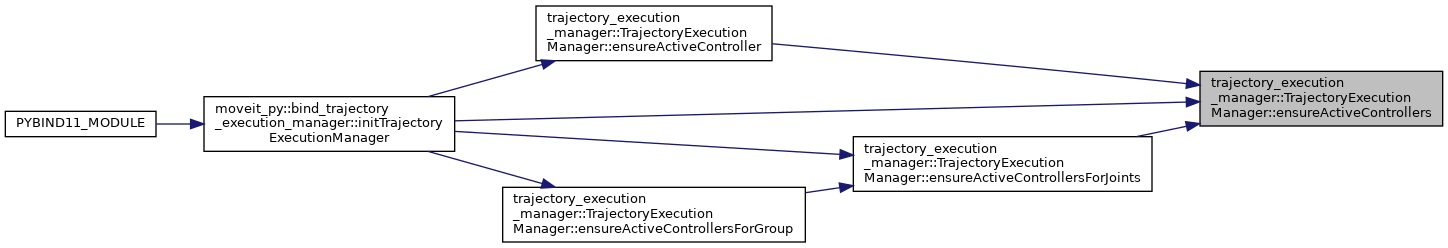

Here is the caller graph for this function:

◆ ensureActiveControllersForGroup()

bool trajectory_execution_manager::TrajectoryExecutionManager::ensureActiveControllersForGroup ( const std::string & group )

Make sure the active controllers are such that trajectories that actuate joints in the specified group can be executed.

Note: If the 'moveit_manage_controllers' parameter is false and the controllers that happen to be active do not cover the joints in the group to be actuated, this function fails.

Definition at line 1646 of file trajectory_execution_manager.cpp.

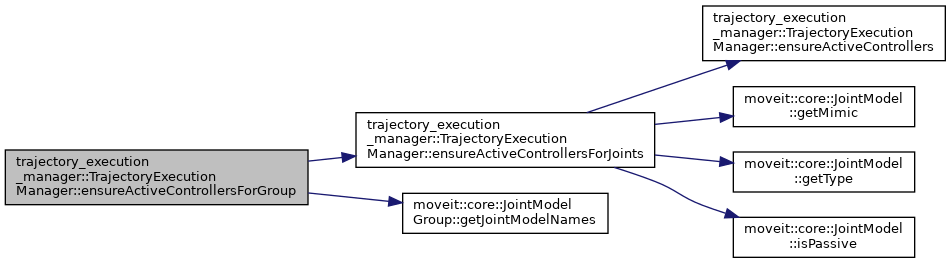

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ensureActiveControllersForJoints()

bool trajectory_execution_manager::TrajectoryExecutionManager::ensureActiveControllersForJoints ( const std::vector< std::string > & joints )

Make sure the active controllers are such that trajectories that actuate joints in the specified set can be executed.

Note: If the 'moveit_manage_controllers' parameter is false and the controllers that happen to be active do not cover the joints to be actuated, this function fails.

Definition at line 1659 of file trajectory_execution_manager.cpp.

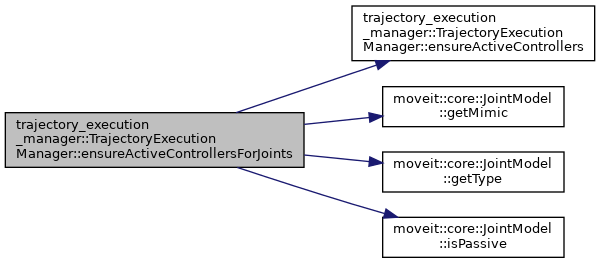

Here is the call graph for this function:

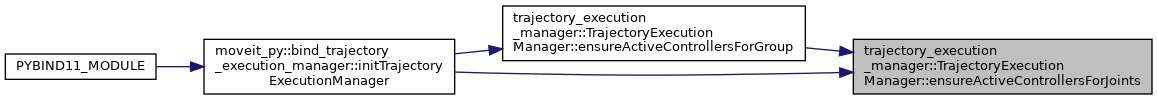

Here is the caller graph for this function:

◆ execute() [1/2]

void trajectory_execution_manager::TrajectoryExecutionManager::execute	(	const ExecutionCompleteCallback &	callback,
		const PathSegmentCompleteCallback &	part_callback,
		bool	auto_clear = `true`
	)

Start the execution of pushed trajectories; this does not wait for completion, but calls a callback when done. A callback is also called for every trajectory part that completes successfully.

Definition at line 1229 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

◆ execute() [2/2]

void trajectory_execution_manager::TrajectoryExecutionManager::execute	(	const ExecutionCompleteCallback &	callback = `ExecutionCompleteCallback()`,
		bool	auto_clear = `true`
	)

Start the execution of pushed trajectories; this does not wait for completion, but calls a callback when done.

Definition at line 1224 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ executeAndWait()

moveit_controller_manager::ExecutionStatus trajectory_execution_manager::TrajectoryExecutionManager::executeAndWait ( bool auto_clear = true )

This is a blocking call for the execution of the passed in trajectories. This just calls execute() and waitForExecution()

Definition at line 1157 of file trajectory_execution_manager.cpp.

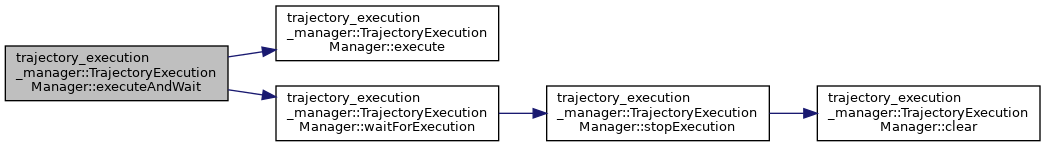

Here is the call graph for this function:

Here is the caller graph for this function:

◆ executionDurationMonitoring()

bool trajectory_execution_manager::TrajectoryExecutionManager::executionDurationMonitoring ( ) const

Get the current status of the monitoring of trajectory execution duration.

Definition at line 267 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ executionVelocityScaling()

double trajectory_execution_manager::TrajectoryExecutionManager::executionVelocityScaling ( ) const

Get the current scaling of the execution velocities.

Definition at line 297 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ getControllerManager()

const moveit_controller_manager::MoveItControllerManagerPtr & trajectory_execution_manager::TrajectoryExecutionManager::getControllerManager ( ) const

Get the instance of the controller manager used (this is the plugin instance loaded)

Definition at line 327 of file trajectory_execution_manager.cpp.

◆ getControllerManagerNode()

rclcpp::Node::SharedPtr trajectory_execution_manager::TrajectoryExecutionManager::getControllerManagerNode ( )

inline

Definition at line 232 of file trajectory_execution_manager.h.

◆ getCurrentExpectedTrajectoryIndex()

std::pair< int, int > trajectory_execution_manager::TrajectoryExecutionManager::getCurrentExpectedTrajectoryIndex ( ) const

Get the state that the robot is expected to be at, given current time, after execute() has been called. The return value is a pair of two index values: first = the index of the trajectory to be executed (in the order push() was called), second = the index of the point within that trajectory. Values of -1 are returned when there is no trajectory being executed, or if the trajectory was passed using pushAndExecute().

Definition at line 1622 of file trajectory_execution_manager.cpp.

◆ getLastExecutionStatus()

moveit_controller_manager::ExecutionStatus trajectory_execution_manager::TrajectoryExecutionManager::getLastExecutionStatus ( ) const

Return the controller status for the last attempted execution.

Definition at line 1641 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ getTrajectories()

const std::vector< TrajectoryExecutionManager::TrajectoryExecutionContext * > & trajectory_execution_manager::TrajectoryExecutionManager::getTrajectories ( ) const

Get the trajectories to be executed.

Definition at line 1636 of file trajectory_execution_manager.cpp.

◆ isControllerActive()

bool trajectory_execution_manager::TrajectoryExecutionManager::isControllerActive ( const std::string & controller )

Check if a controller is active.

Definition at line 723 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isManagingControllers()

bool trajectory_execution_manager::TrajectoryExecutionManager::isManagingControllers ( ) const

If this function returns true, then this instance of the manager is allowed to load/unload/switch controllers.

Definition at line 322 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ processEvent()

void trajectory_execution_manager::TrajectoryExecutionManager::processEvent ( const std::string & event )

Execute a named event (e.g., 'stop')

Definition at line 332 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ push() [1/4]

bool trajectory_execution_manager::TrajectoryExecutionManager::push	(	const moveit_msgs::msg::RobotTrajectory &	trajectory,
		const std::string &	controller = `""`
	)

Add a trajectory for future execution. Optionally specify a controller to use for the trajectory. If no controller is specified, a default is used.

Definition at line 350 of file trajectory_execution_manager.cpp.

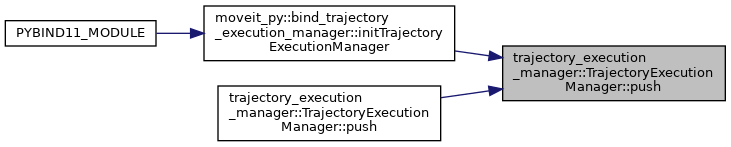

Here is the caller graph for this function:

◆ push() [2/4]

bool trajectory_execution_manager::TrajectoryExecutionManager::push	(	const moveit_msgs::msg::RobotTrajectory &	trajectory,
		const std::vector< std::string > &	controllers
	)

Add a trajectory for future execution. Optionally specify a set of controllers to consider using for the trajectory. Multiple controllers can be used simultaneously to execute the different parts of the trajectory. If multiple controllers can be used, preference is given to the already loaded ones. If no controller is specified, a default is used.

Definition at line 383 of file trajectory_execution_manager.cpp.

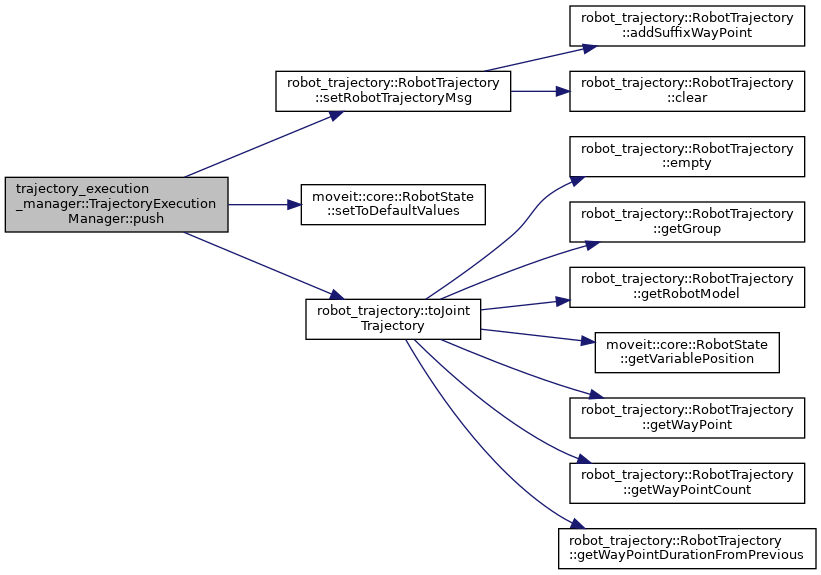

Here is the call graph for this function:

◆ push() [3/4]

bool trajectory_execution_manager::TrajectoryExecutionManager::push	(	const trajectory_msgs::msg::JointTrajectory &	trajectory,
		const std::string &	controller = `""`
	)

Add a trajectory for future execution. Optionally specify a controller to use for the trajectory. If no controller is specified, a default is used.

Definition at line 362 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

◆ push() [4/4]

bool trajectory_execution_manager::TrajectoryExecutionManager::push	(	const trajectory_msgs::msg::JointTrajectory &	trajectory,
		const std::vector< std::string > &	controllers
	)

Add a trajectory for future execution. Optionally specify a set of controllers to consider using for the trajectory. Multiple controllers can be used simultaneously to execute the different parts of the trajectory. If multiple controllers can be used, preference is given to the already loaded ones. If no controller is specified, a default is used.

Definition at line 375 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

◆ setAllowedExecutionDurationScaling()

void trajectory_execution_manager::TrajectoryExecutionManager::setAllowedExecutionDurationScaling ( double scaling )

When determining the expected duration of a trajectory, this multiplicative factor is applied to get the allowed duration of execution

Definition at line 272 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ setAllowedGoalDurationMargin()

void trajectory_execution_manager::TrajectoryExecutionManager::setAllowedGoalDurationMargin ( double margin )

When determining the expected duration of a trajectory, this multiplicative factor is applied to allow more than the expected execution time before triggering trajectory cancel

Definition at line 282 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ setAllowedStartTolerance()

void trajectory_execution_manager::TrajectoryExecutionManager::setAllowedStartTolerance ( double tolerance )

Set joint-value tolerance for validating trajectory's start point against current robot state.

Definition at line 302 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ setExecutionVelocityScaling()

void trajectory_execution_manager::TrajectoryExecutionManager::setExecutionVelocityScaling ( double scaling )

Before sending a trajectory to a controller, scale the velocities by the factor specified. By default, this is 1.0

Definition at line 292 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ setWaitForTrajectoryCompletion()

void trajectory_execution_manager::TrajectoryExecutionManager::setWaitForTrajectoryCompletion ( bool flag )

Enable or disable waiting for trajectory completion.

Definition at line 312 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

◆ stopExecution()

void trajectory_execution_manager::TrajectoryExecutionManager::stopExecution ( bool auto_clear = true )

Stop whatever executions are active, if any.

Definition at line 1179 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

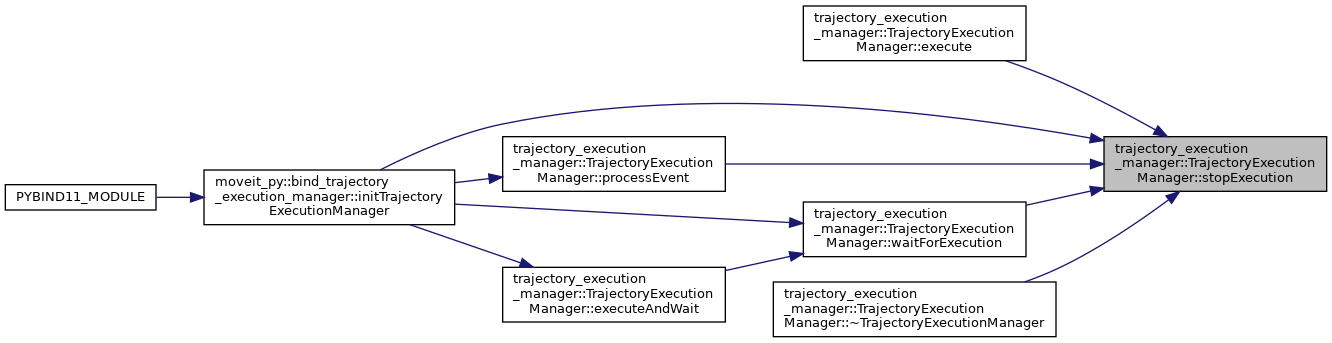

Here is the caller graph for this function:

◆ waitForExecution()

moveit_controller_manager::ExecutionStatus trajectory_execution_manager::TrajectoryExecutionManager::waitForExecution ( )

Wait until the execution is complete. This only works for executions started by execute(). If you call this after pushAndExecute(), it will immediately stop execution.

Definition at line 1256 of file trajectory_execution_manager.cpp.

Here is the call graph for this function:

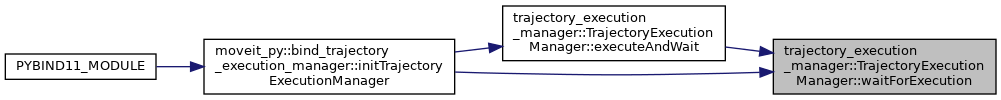

Here is the caller graph for this function:

◆ waitForTrajectoryCompletion()

bool trajectory_execution_manager::TrajectoryExecutionManager::waitForTrajectoryCompletion ( ) const

Get the current state of waiting for the trajectory being completed.

Definition at line 317 of file trajectory_execution_manager.cpp.

Here is the caller graph for this function:

Member Data Documentation

◆ EXECUTION_EVENT_TOPIC

const std::string trajectory_execution_manager::TrajectoryExecutionManager::EXECUTION_EVENT_TOPIC = "trajectory_execution_event"

static

Definition at line 65 of file trajectory_execution_manager.h.

The documentation for this class was generated from the following files:

moveit_ros/planning/trajectory_execution_manager/include/moveit/trajectory_execution_manager/trajectory_execution_manager.h
moveit_ros/planning/trajectory_execution_manager/src/trajectory_execution_manager.cpp

Classes

Public Types

Public Member Functions

Static Public Attributes

Detailed Description

Member Typedef Documentation

◆ ExecutionCompleteCallback

◆ PathSegmentCompleteCallback

Constructor & Destructor Documentation

◆ TrajectoryExecutionManager() [1/2]

◆ TrajectoryExecutionManager() [2/2]

◆ ~TrajectoryExecutionManager()

Member Function Documentation

◆ allowedExecutionDurationScaling()

◆ allowedGoalDurationMargin()

◆ allowedStartTolerance()

◆ areControllersActive()

◆ clear()

◆ enableExecutionDurationMonitoring()

◆ ensureActiveController()

◆ ensureActiveControllers()

◆ ensureActiveControllersForGroup()

◆ ensureActiveControllersForJoints()

◆ execute() [1/2]

◆ execute() [2/2]

◆ executeAndWait()

◆ executionDurationMonitoring()

◆ executionVelocityScaling()

◆ getControllerManager()

◆ getControllerManagerNode()

◆ getCurrentExpectedTrajectoryIndex()

◆ getLastExecutionStatus()

◆ getTrajectories()

◆ isControllerActive()

◆ isManagingControllers()

◆ processEvent()

◆ push() [1/4]

◆ push() [2/4]

◆ push() [3/4]

◆ push() [4/4]

◆ setAllowedExecutionDurationScaling()

◆ setAllowedGoalDurationMargin()

◆ setAllowedStartTolerance()

◆ setExecutionVelocityScaling()

◆ setWaitForTrajectoryCompletion()

◆ stopExecution()

◆ waitForExecution()

◆ waitForTrajectoryCompletion()

Member Data Documentation

◆ EXECUTION_EVENT_TOPIC
