dynamics_solver::DynamicsSolver Class Reference

#include <dynamics_solver.h>

Public Member Functions

 DynamicsSolver (const moveit::core::RobotModelConstPtr &robot_model, const std::string &group_name, const geometry_msgs::msg::Vector3 &gravity_vector)
 Initialize the dynamics solver. More...

bool getTorques (const std::vector< double > &joint_angles, const std::vector< double > &joint_velocities, const std::vector< double > &joint_accelerations, const std::vector< geometry_msgs::msg::Wrench > &wrenches, std::vector< double > &torques) const
 Get the torques (the order of all input and output is the same as the order of joints for this group in the RobotModel) More...

bool getMaxPayload (const std::vector< double > &joint_angles, double &payload, unsigned int &joint_saturated) const
 Get the maximum payload for this group (in kg). Payload is the weight that this group can hold when the weight is attached to the origin of the last link of this group. (The order of joint_angles vector is the same as the order of joints for this group in the RobotModel) More...

bool getPayloadTorques (const std::vector< double > &joint_angles, double payload, std::vector< double > &joint_torques) const
 Get torques corresponding to a particular payload value. Payload is the weight that this group can hold when the weight is attached to the origin of the last link of this group. More...

const std::vector< double > & getMaxTorques () const
 Get maximum torques for this group. More...

const moveit::core::RobotModelConstPtr & getRobotModel () const
 Get the kinematic model. More...

const moveit::core::JointModelGroupgetGroup () const


Detailed Description

This solver currently computes the required torques given a joint configuration, velocities, accelerations and external wrenches acting on the links of a robot

Definition at line 58 of file dynamics_solver.h.

Constructor & Destructor Documentation

◆ DynamicsSolver()

dynamics_solver::DynamicsSolver::DynamicsSolver ( const moveit::core::RobotModelConstPtr &  robot_model,
const std::string &  group_name,
const geometry_msgs::msg::Vector3 &  gravity_vector
)

Initialize the dynamics solver.

Parameters
urdf_modelThe urdf model for the robot
srdf_modelThe srdf model for the robot
group_nameThe name of the group to compute stuff for
Returns
False if initialization failed

Definition at line 75 of file dynamics_solver.cpp.

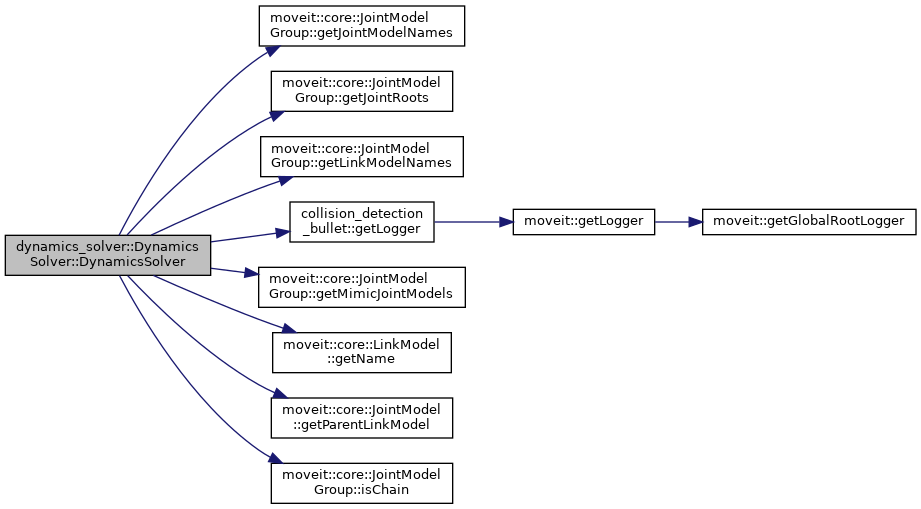

Here is the call graph for this function:

Member Function Documentation

◆ getGroup()

const moveit::core::JointModelGroup* dynamics_solver::DynamicsSolver::getGroup ( ) const
inline

Definition at line 131 of file dynamics_solver.h.

◆ getMaxPayload()

bool dynamics_solver::DynamicsSolver::getMaxPayload ( const std::vector< double > &  joint_angles,
double &  payload,
unsigned int &  joint_saturated
) const

Get the maximum payload for this group (in kg). Payload is the weight that this group can hold when the weight is attached to the origin of the last link of this group. (The order of joint_angles vector is the same as the order of joints for this group in the RobotModel)

Parameters
joint_anglesThe joint angles (desired joint configuration) this must have size = number of joints in the group
payloadThe computed maximum payload
joint_saturatedThe first saturated joint and the maximum payload
Returns
False if the input set of joint angles is of the wrong size

Definition at line 225 of file dynamics_solver.cpp.

Here is the call graph for this function:

◆ getMaxTorques()

const std::vector< double > & dynamics_solver::DynamicsSolver::getMaxTorques ( ) const

Get maximum torques for this group.

Returns
Vector of max torques

Definition at line 326 of file dynamics_solver.cpp.

◆ getPayloadTorques()

bool dynamics_solver::DynamicsSolver::getPayloadTorques ( const std::vector< double > &  joint_angles,
double  payload,
std::vector< double > &  joint_torques
) const

Get torques corresponding to a particular payload value. Payload is the weight that this group can hold when the weight is attached to the origin of the last link of this group.

Parameters
joint_anglesThe joint angles (desired joint configuration) this must have size = number of joints in the group
payloadThe payload for which to compute torques (in kg)
joint_torquesThe resulting joint torques
Returns
False if the input vectors are of the wrong size

Definition at line 290 of file dynamics_solver.cpp.

Here is the call graph for this function:

◆ getRobotModel()

const moveit::core::RobotModelConstPtr& dynamics_solver::DynamicsSolver::getRobotModel ( ) const
inline

Get the kinematic model.

Returns
kinematic model

Definition at line 126 of file dynamics_solver.h.

◆ getTorques()

bool dynamics_solver::DynamicsSolver::getTorques ( const std::vector< double > &  joint_angles,
const std::vector< double > &  joint_velocities,
const std::vector< double > &  joint_accelerations,
const std::vector< geometry_msgs::msg::Wrench > &  wrenches,
std::vector< double > &  torques
) const

Get the torques (the order of all input and output is the same as the order of joints for this group in the RobotModel)

Parameters
joint_anglesThe joint angles (desired joint configuration) this must have size = number of joints in the group
joint_velocitiesThe desired joint velocities this must have size = number of joints in the group
joint_accelerationsThe desired joint accelerations this must have size = number of joints in the group
wrenchesExternal wrenches acting on the links of the robot this must have size = number of links in the group
torquesComputed set of torques are filled in here this must have size = number of joints in the group
Returns
False if any of the input vectors are of the wrong size

Definition at line 154 of file dynamics_solver.cpp.

Here is the call graph for this function:

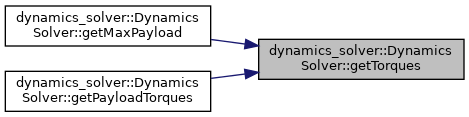

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
